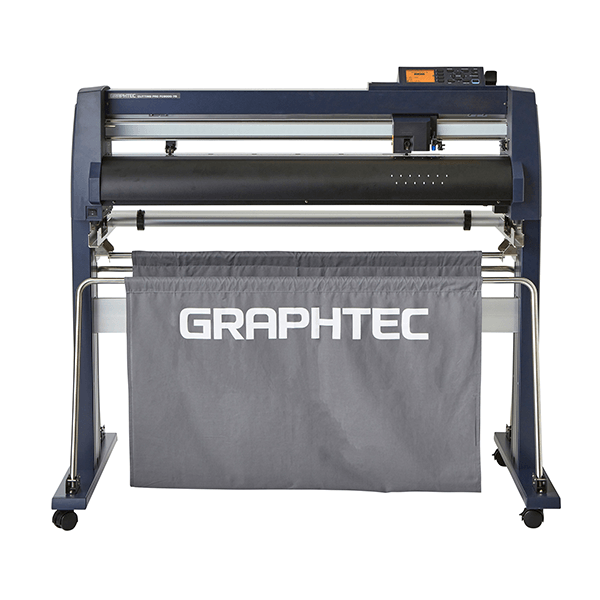

Graphtec FC9000 Cutter/Plotter 30"

Model

FC9000-75

FC9000-100

FC9000-140

FC9000-160

CPU

32-bit CPU

Configuration

Grit rolling plotter

Drive method

Digital servo drive

Max. cutting speed

58.5 inches per second (45 degree direction) 41.3 (axis direction)

Cutting force

Max. 600 gf in 48 steps

Axial acceleration

Max. 39.2 m/s2 (4 G) in 8 steps

Max. cutting area

(W x L) (*1)

30 in x 164 ft

762 mm x 50 m

42 in x 164 ft

1067 mm x 50 m

54 in x 164 ft

1372 mm x 50 m

64 in x 164 ft

1626 mm x 50 m

Guaranteed precision cutting area (*1)

29.21 in x 50 ft

41 in x 32 ft,

35.2 in x 50 ft

53 in x 32 ft,

35.2 in x 50 ft

63 in x 32 ft,

35.2 in x 50 ft

Mountable media width(*2)

Min. 1.96 in

Max. 36.22 in

Min. 1.96 in

Max. 48.19 in

Min. 1.96 in

Max. 60.20 in

Min. 1.96 in

Max. 72.83 in

Max. cross cut width

30 in

42 in

54 in

64 in

Number of push rollers

2 rollers

3 rollers

4 rollers

4 rollers

Compatible roll media diameter

Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)

Mechanical resolution

0.005 mm

Programmable resolution

GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm

Distance accuracy (*2)

Max. 0.1 mm or 0.1 % of plotted length

Repeatability (*2)

Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)

Minimum character size

Approx. 5 mm alphanumeric (varies depending on character font and media)

Mountable number of tools

1 tool (cutting blade, plotting pen or pouncing tool) in standard;

2 tools (cutting blade and plotting pen) when second penholder (optional) is installed

Blade types

Supersteel (0.9 mm or 1.5 mm diameter)

Pen types

Water-based fiber-tip pen, Oil-based ballpoint pen

Pouncing tool type

Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)

Media types (*3)

Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,

Sandblast resist rubber up to 1 mm thick

Compatible paper for pouncing

Regular paper from 0.06 to 0.13 mm thick

Cross-cutter

Built into the tool carriage

Perforation cutting

Supported (performed by force control)

Interface

USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX

Buffer memory

2 MB

Command sets

GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)

Condition settings

Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)

Display

Graphic type LCD (3.7-inch, backlight)

Power source

100 V to 240 V AC, 50 / 60 Hz

Power consumption

AC100-240 V, 50/60 Hz

Operating environment

50 to 95 ºF, 35 to 75 % R.H. (non-condensing)

Guaranteed accuracy environment

60 to 89 ºF, 35 to 70 % R.H. (non-condensing)

External dimensions

(W x D x H)

Approx. 50" x 28" x 48"

(1270 x 711 x 1219 mm)

Approx. 61.8" x 28" x 48"

(1570 x 715 x 1219 mm)

Approx. 73.6" x 28" x 48"

(1870 x 711 x 1219 mm)

Approx. 84" x 28" x 48"

(2130 x 711 x 1219 mm)

Weight (*8)

108 lbs.

123 lbs.

141 lbs.

178 lbs. /w take-up

154 lbs.

195 lbs. /w take-up

Included software (*6)

Windows Driver, Graphtec Pro Studio (*5),

Cutting Master 4, Graphtec Studio for Mac

Compatible OS (*5)

Windows 10 / 8.1 / 7

Mac OS X 10.6 to 10.11

Mac OS 10.12 to 1.14

Graphtec Studio: 10.6 to 10.14

Cutting Master 4: 10.7-10.14

Safety

PSE, UL/cUL, CE mark)

EMC

VCCI Class A, FCC Class A, CE mark
