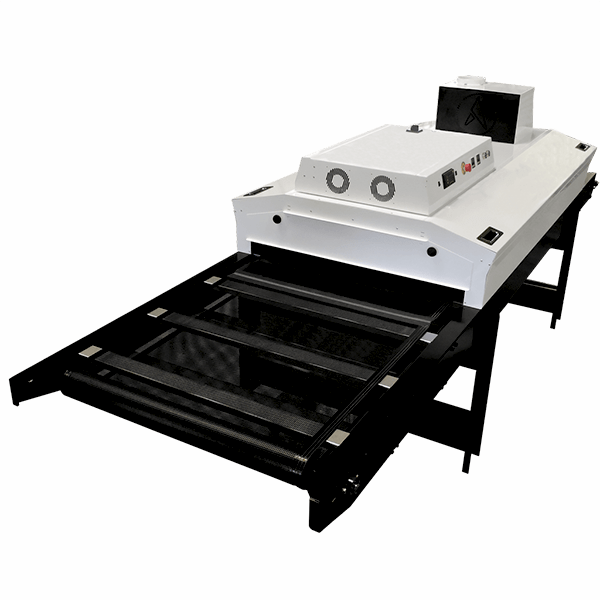

Aeolus Forced Air Dryer
Couldn't load pickup availability
Product Details
Product Details
Description
The Aeolus is the next generation of Forced Air Conveyor Dryer. Using BBC’s proprietary heating elements there is nothing that BBC Aeolus dyer can’t cure. From plastisol to pretreat, and everything in between, the Aeolus out shines the competition. The Aeolus’s revolutionary design uses banks of angled heating panels running along the edge of the PTFE coated belt to all but eliminate edge loss. Its unique design, partnered with BBC’s proprietary watt density algorithm, provides the Aeolus with the most even edge-to-edge cure in its class.
Features

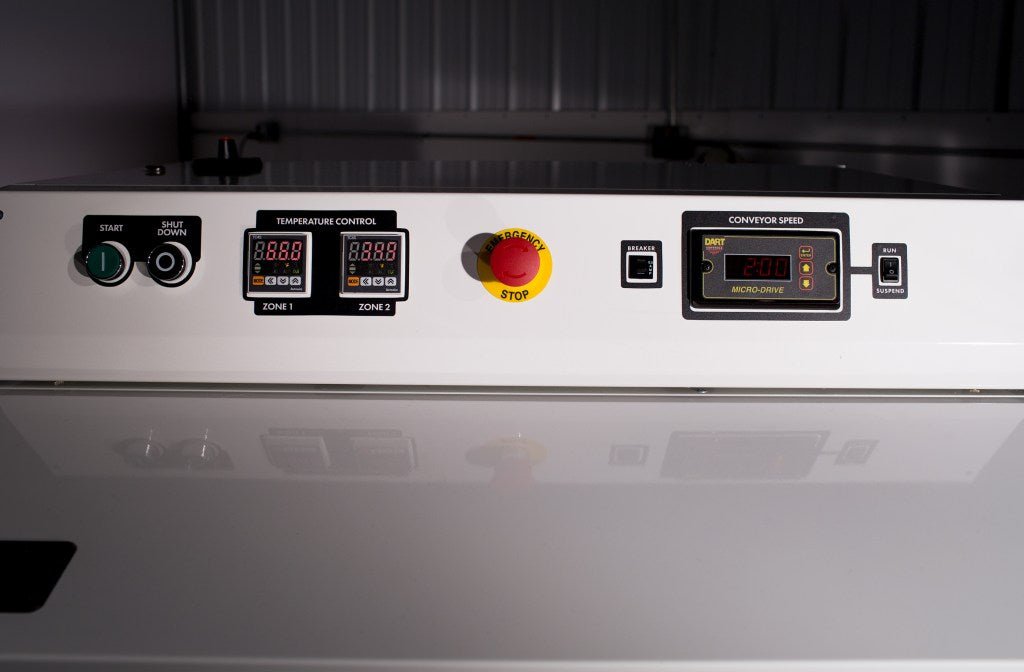

- Built-in Digital Heat Control
- Built-in Digital Speed Control
- Includes TruTrak Belt
- Auto Shut-off
- 6’ Chamber
- 36” & 54” Belt Widths
Specifications
36" Belt Width
Production rates are based on the following: (times may vary based on process)
| Dwell Time | Shirts per hour | |||||
| Plastisol | 30s | 1440 | 960 |
860 |
860 | 720 |
| Water-Based | 45s | 960 | 640 | 575 | 575 | 480 |
| Direct-To-Garment | 130s | 330 | 225 | 200 | 200 | 160 |
Conveyor Extensions Available in 24” sections
| OVERALL LENGTH | 144" |
HEATER DIMENSIONS | (3) 20”x40” |
| OVERALL WIDTH | 48" | HEATER CONTROL | Digital•2 Zones |
| OVERALL HEIGHT | 59" |
SPEED CONTROL | Digital |
| CHAMBER LENGTH | 72" | DWELL TIMES | 19s - 330s |
| BELT WIDTH | 36" | APPRX SHIP WEIGHT | 1000lbs |
| FORCED AIR | YES | ||
| HEATER WATTAGE | 240v•1P•17,280w•72A | 240v•3P•17,280w•42A |
Unit design and data are subject to change at the discretion of BBC Industries, Inc.
54" Belt Width
Production rates are based on the following: (times may vary based on process)
| Dwell Time | Shirts per hour | |||||
| Plastisol | 30s | 1900 |
1440 |
1300 |
865 | 720 |
| Water-Based | 45s | 1280 | 960 | 860 | 575 | 480 |
| Direct-To-Garment | 130s | 450 | 330 | 300 | 200 | 165 |
Conveyor Extensions Available in 24” sections
| OVERALL LENGTH | 144" |
HEATER DIMENSIONS | (3) 20”x58” |
| OVERALL WIDTH | 66" | HEATER CONTROL | Digital•2 Zones |
| OVERALL HEIGHT | 59" |
SPEED CONTROL | Digital |
| CHAMBER LENGTH | 72" | DWELL TIMES | 19s - 330s |
| BELT WIDTH | 54" | APPRX SHIP WEIGHT | 1250lbs |
| FORCED AIR | YES | ||
| HEATER WATTAGE | 240v•3P•23,919w•58A |
Unit design and data are subject to change at the discretion of BBC Industries, Inc.
